The fluid is then be pumped into the cylinder which causes the cylinder rod to either retract or extend.

How does sea star hydraulic steering work. Pro trim pt1000p controls trim or jackplate only. Wire coil can wind up tight around the steering wheel shaft and prevent further steering. As part of any new helm pump installation make sure that the hydraulic fill port is located on top to facilitate any air bleeding upon filling the system.

System selection installation and service is substantially simplified with just three major components helm cylinder and tube or hose. Then repeat steps 1 through 5 at station no. The helm consists of a hydraulic pump and a system of valves which pumps fluid into the hydraulic lines.

Seastar solutions offers fingertip control with pro trim a column mounted switch without the problem of wires wrapping around the steering column. Two line manual hydraulic boat steering systems use a helm pump to directly move the hydraulic cylinder. The seastar hydraulic steering system is designed to provide that extra margin of muscle when needed and easily handles outboard sterndrive and inboard engines in boats up to 50 feet.

Perform steps 1 through 5 at station no. Seastar solutions the leader in hydraulic and mechanical marine steering has introduced a new outboard hydraulic cylinder designed to keep pace with the introduction of heavier higher horsepower engines found on todays newer boats. Oil requirements 4 5 bottles.

How does hydraulic boat steering work. Incoming steering fluid pushes a small piston that is. When properly bled the number of steering wheel turns should match those on the seastar ordering guide for single cylinder in the section of this catalog for the cylinder type used.

During operation a clockwise turn of the boats steering wheel will force hydraulic fluid from the helm pump unit into the boats starboard side hydraulic line. The helm and the cylinder. Pro trim dual pt2000p controls both functions.

The pump is activated by turning the steering wheel which causes a swashplate to press on a series of small piston pumps. There are two basic hydraulic steering parts. Fill purge dual station single cylinder.

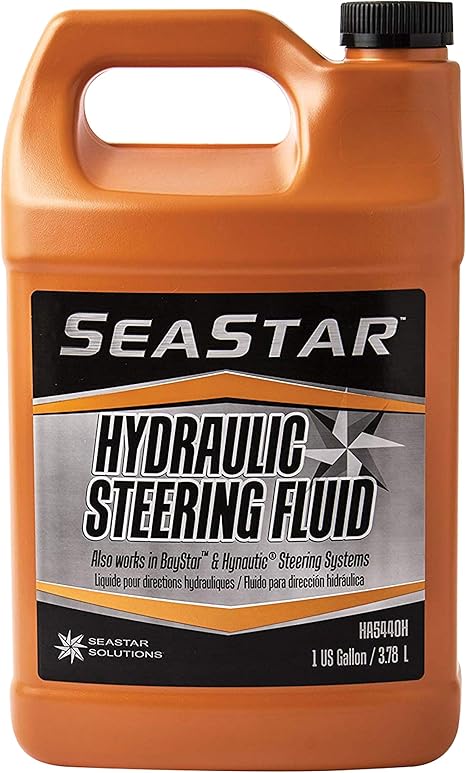

Of course none of these individual parts will work without the steering fluid and seastar hydraulic steering fluid is formulated to provide the best performance for your seastar steering system. Do not use a wire coil type trim switch with hydraulic steering.
